[Kaggle Extra Study] 15. GBM vs. XGBoost

In this post, I want to talk about the difference between GBM(Gradient Boosting Machine) and XGBoost.

reference:  https://towardsdatascience.com/https-medium-com-vishalmorde-xgboost-algorithm-long-she-may-rein-edd9f99be63d



Reading the previous post will be helpful for your understanding:

[Kaggle Extra Study] 14. Tree-based Ensemble Models

GBM vs. XGBoost

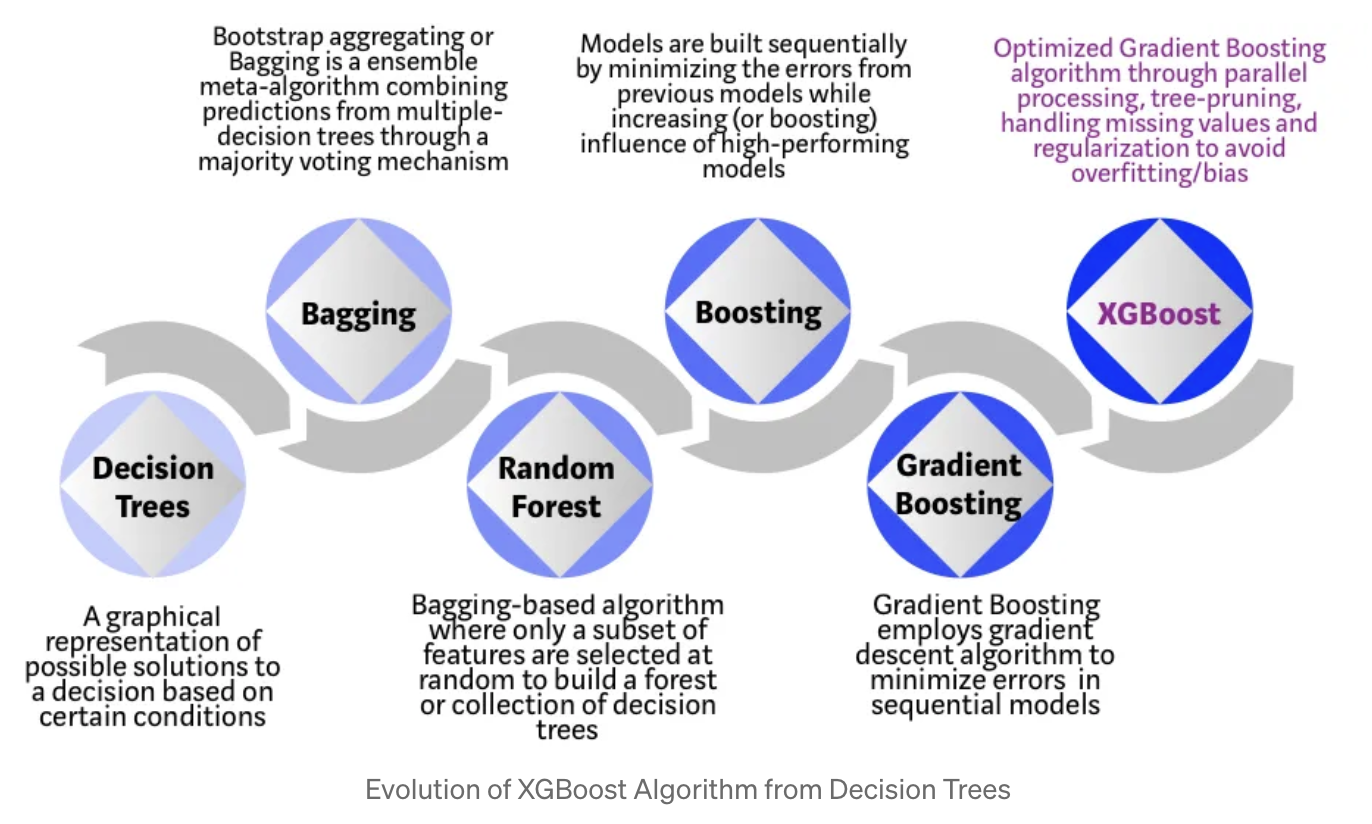

• According to the image above, XGBoost is basically optimized Gradient Boosting algorithm through parallel processing, tree pruning, handling missing values and regularization to avoid overfitting/bias.
  • In detail, Gradient Boosting Machine had issues with slow speed and potential overfitting and XGBoost was created to address these problems.
• We can fundamentally separate the difference between GBM and XGBoost in 2 big categories: System Optimization and Algorithmic Updates.

System Optimization

1. Parallelization(병렬 처리)
   • XGBoost supports parallel processing.
     • Thinking of a simple double loop structure, traditionally the inner loop had to be processed before the outer loop could proceed.
     • However, XGBoost has enabled the interchangeability of loop orders through global scanning initialization of all instances and parallel thread-based sorting to improve execution speed.
     • This change enhances performance by getting rid of computational overheads.
       • "computational overheads" refers to the extra processing time and resources that were required in the traditional sequential processing of nested loops.
2. Tree Pruning
   • Instead of using the "criterion first" approach, XGBoost sets the "max_depth" parameter.
   • This "depth-first" approach has brought significant computational benefits.
   • "The stopping criterion for tree splitting within GBM framework is greedy in nature and depends on the negative loss criterion at the point of split. XGBoost uses ‘max_depth’ parameter as specified instead of criterion first, and starts pruning trees backward."
     • Greedy approach: decides splits based on 'loss reduction'.
       • Continues splitting at each node until there's no further loss reduction.
       • This can be computationally expensive and inefficient.
     • "starts pruning trees backward" meaning:
       • First grows the tree to maximum depth specified by the 'max_depth' parameter.
       • Then performs pruning backward.
         • pruning: an important technique in decision trees to prevent overfitting and simplify the model.
           • To explain simply:
             • Just as a gardener cuts unnecessary branches to make a healthier tree, in machine learning, pruning is the process of removing unnecessary tree branches (nodes).
           • Pre-pruning
             • Pruning while the tree is growing
             • Example: Limiting with parameters like max_depth, min_samples_split
           • Post-pruning
             • Pruning after growing the tree to its maximum
             • This is the method used by XGBoost
             • Uses validation dataset to remove unnecessary splits
       • This is called the depth-first approach.
   • Results in:
     • More efficient memory access (allows continuous memory access).
     • Easier parallel processing (can process each depth simultaneously).
     • Pruning is done at once, increasing computational efficiency.
   • To explain with an example:
     • Regular GBM: Similar to a restaurant deciding whether to prepare food as orders come in from each table
     • XGBoost: Similar to taking all table orders first and then processing them efficiently all at once
3. Hardware Optimization
   • XGBoost is designed to efficiently utilize hardware resources.
   • It allocates each thread to an internal buffer using cache memory storage to store gradient statistics.
   • Advanced features like out-of-core computing optimize disk space while processing large dataframes that don't fit in memory.

Algorithmic Updates

1. Regularization
   • The model applies penalties through Lasso (L1) and Ridge (L2) regularization.
   • These methods can help control overfitting.
   • You can find more information about L1 and L2 regularization in my previous posts.
     • https://dongsunseng.com/entry/Kaggle-Study-5-Regularization-%EA%B0%80%EC%A4%91%EC%B9%98-%EA%B7%9C%EC%A0%9C
2. Sparsity Awareness
   • XGBoost acknowledges sparsity by automatically learning the best missing values based on training loss, efficiently handling sparse patterns in various data types.
     • Sparsity: A state where data has many missing values or zeros
     • Examples: Customer purchase data, user-item matrix in recommendation systems
     • XGBoost's Smart Processing Method:
       • Doesn't simply replace missing values with 0 or mean values.
       • Automatically learns the optimal direction for missing values during training.
       • Utilizes the information contained in missing patterns themselves.
3. Weighted Quantile Sketch
   • XGBoost uses the "distributed weighted Quantile sketch" algorithm to efficiently find optimal split points.
     • Weighted Quantile Sketch(가중 분위수 스케치) Algorithm:
       • Quantile Sketch?
         • A method to approximately calculate percentiles of large-scale data.
         • Can efficiently process data without loading the entire dataset into memory.
       • Meaning of "Weighted"
         • Assigns different importance (weights) to each data point.
         • Weights are determined based on prediction errors from previous trees
         • Higher weights are given to samples that are harder to predict.
4. Cross-validation
   • Cross-validation is built into the system.

---

Reference

XGBoost Algorithm: Long May She Reign!
