[Kaggle Study] 17. ResNet Skip Connection

Skip Connection?

• Skip connections are now a standard module in many convolutional architectures.
• They provide alternative paths for gradients (including backpropagation).
• This additional pathway has been experimentally proven to often help with model convergence.
• In deep architectures, skip connections, as the name suggests, skip some layers of the neural network and provide the output of one layer as input to a later layer instead of the next layer.
• When going backward(back propagation) using the chain rule, we need to keep multiplying the error gradient with terms.
• However, in a long multiplication chain, multiplying many things less than 1 together makes the gradient very small.
  • Traditional backpropagation suffers from chain multiplication
  • Multiple small terms (<1) lead to vanishing gradients
  • Can result in complete gradient death (zero gradients), not updating the early layers at all
  • Early layers particularly affected
• Generally, there are two fundamental ways to use skip connections across different non-sequential layers:
  • a) Addition, as in Residual architectures
    • residual skip connections
    • Used in ResNet and variants
    • Adds feature maps from different layers
    • Preserves dimensionality
    • Computationally efficient
  • b) Concatenation, as in densely connected architectures.
    • Used in DenseNet
    • Concatenates feature maps
    • Increases feature dimension
    • Allows for feature reuse

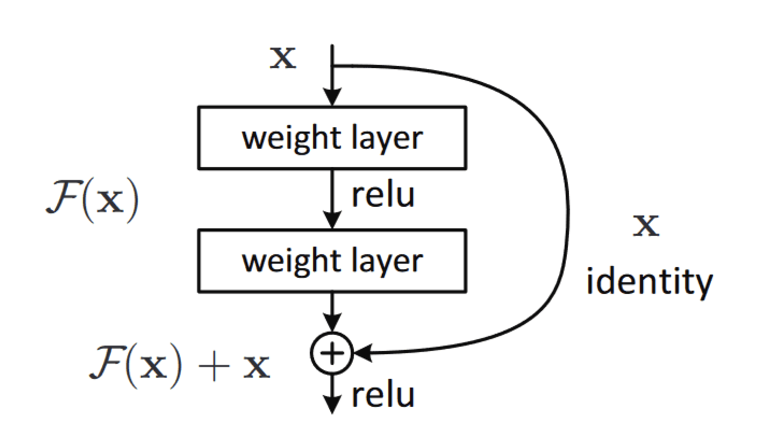

ResNet? Skip Connections via Addition

• The core idea is using vector addition to backpropagate through an identity function.
• Then, multiplying the gradient by 1 preserves its value from the previous layers.
• This is the main idea behind ResNets (Residual Networks).
• They stack these skip residual blocks together.
• They use the identity function to preserve gradients.
• Beyond vanishing gradients, there's another commonly used reason.
• For excessive tasks (e.g., semantic segmentation, optical flow estimation, etc.), there is some information captured in early layers that we want to make available for learning in later layers.
• This is because features learned in early layers have been observed to correspond to lower semantic information extracted from the input.
• Without skip connections, the information would have become too abstract.

DenseNet? Skip Connections via Concatenation

• For many dense prediction problems, there is low-level information shared between input and output, and it would be desirable to transmit this information directly through the network.
• Another way to achieve skip connections is to concatenate previous feature maps.
• The most famous deep learning architecture for this is DenseNet.
• This architecture uses extensive feature connections to ensure maximum information flow between layers in the network.
• Unlike ResNet, this is achieved by directly connecting all layers to each other through concatenation.
• In practice, what it basically does is concatenate along the feature channel dimension.
• This leads to:
  • a) an enormous amount of feature channels in the last layers of the network
  • b) more compact models
  • c) extreme feature reusability

Why does Skip Connection results in better performance?

1. Solving the Vanishing Gradient Problem

• Skip connections directly transmit information from shallow layers to deeper layers
• This enables better gradient flow during backpropagation, making effective training possible even in deep networks
• Mathematically, ∂L/∂xl is transmitted with an addition of 1, preventing gradients from becoming too small
  • letter l from xl and yl means # layer variable
  • Standard network: yl = H(xl)
    • Gradient during backpropagation: ∂L/∂xl = (∂L/∂yl) * (∂yl/∂xl)
    • As networks get deeper, the ∂yl/∂xl term keeps multiplying, potentially making gradients very small -> Vanishing Gradient
  • With skip connection:
    • Skip connection: yl = H(xl) + xl
    • Gradient during backpropagation: ∂L/∂xl = (∂L/∂yl) * (∂H(xl)/∂xl + 1)
    • The addition of +1 term ensures gradients are preserved by at least 1
  • Example:
    • Standard Neural Network
      • ∂L/∂x3 = (∂L/∂y3) * (∂y3/∂x3)
      • ∂L/∂x2 = (∂L/∂x3) * (∂x3/∂y2) * (∂y2/∂x2)
      • ∂L/∂x1 = (∂L/∂x2) * (∂x2/∂y1) * (∂y1/∂x1)
    • With Skip Connection
    • ∂L/∂x3 = (∂L/∂y3) * (∂H(x3)/∂x3 + 1)
    • ∂L/∂x2 = (∂L/∂x2) * (∂H(x2)/∂x2 + 1)
    • ∂L/∂x1 =  (∂L/∂x2) * (∂H(x1)/∂x1 + 1)
  • Key Benefits:
    • Gradients never become zero due to the added 1
    • Stable gradient propagation even in deeper layers
    • This enables training of deep networks
  • Practical Effects:
    • Ability to train deeper networks
    • Improved convergence speed
    • Better performance achievement
• This is particularly effective when combined with activation functions like ReLU

2. Information Preservation

• Prevents input information from being transformed/lost as it passes through the network
• Important features from shallow layers are well preserved to deeper layers
• Notable is that it enables information transmission through multiple paths
• This allows the network to utilize features at various levels of abstraction simultaneously

3. Optimization Benefits

• With skip connections, instead of directly learning H(x), the network learns F(x) = H(x) - x
• This is an easier form to optimize as the model only needs to learn the residual
  • Traditionally, neural networks learned the function H that directly transforms input x into output H(x)
  • The goal was to transform the input into a completely new representation
  • Instead of learning the entire transformation H(x) directly, the network only needs to learn F(x), which is the residual (difference) from the input
• Residual learning expressed as H(x) = F(x) + x makes it easier to learn transformations close to the identity mapping
• This is particularly important in deep networks, as it allows learning only necessary transformations

4. Ensemble Effect

• Features from various depths are combined to create an implicit ensemble-like effect
• This helps improve the model's generalization performance
• Particularly enables more robust predictions during testing

5. Increased Model Flexibility

• The network can learn how much to utilize skip connections based on the situation
• Can effectively use deep layers when needed and bypass them via skip connections when unnecessary
• The network can automatically adjust its "effective depth"
• During training, if certain layers are deemed unnecessary, their weights can be set close to zero, primarily using the skip connection

6. Benefits in Early Training Stages

• Initial Training Problems in Traditional Deep Learning
  • The deeper the network, random initial weights make it difficult to extract meaningful features
  • Signals can become distorted or lost as they pass through deep layers
  • This results in very slow performance improvement during the early stages of training
• Early Training Advantages of Skip Connections
  • Original information from shallow layers is directly transmitted to deeper layers
  • This allows the network to begin learning quickly, similar to a shallow network
  • The network can gradually learn transformations in deeper layers
• Skip connections help gradient propagation during early training stages
• This plays a crucial role especially in the initial training phases of deep networks
• Helps the network quickly learn meaningful representations during early training stages



Reference

C_4.02 Skip Connections - Backbone

---
