CIBMTR - Equity in post-HCT Survival Predictions #5 How To Get Started - Understanding the Metric

Annotation of Chris Deotte's discussion about "How To Get Started - Understanding the Metric".

https://www.kaggle.com/competitions/equity-post-HCT-survival-predictions/discussion/550003

CIBMTR - Equity in post-HCT Survival Predictions

---

C-Index Explained

• The competition metric is Stratified Concordance Index.
• Let's explain how C-Index works (and let's ignore stratified for now).

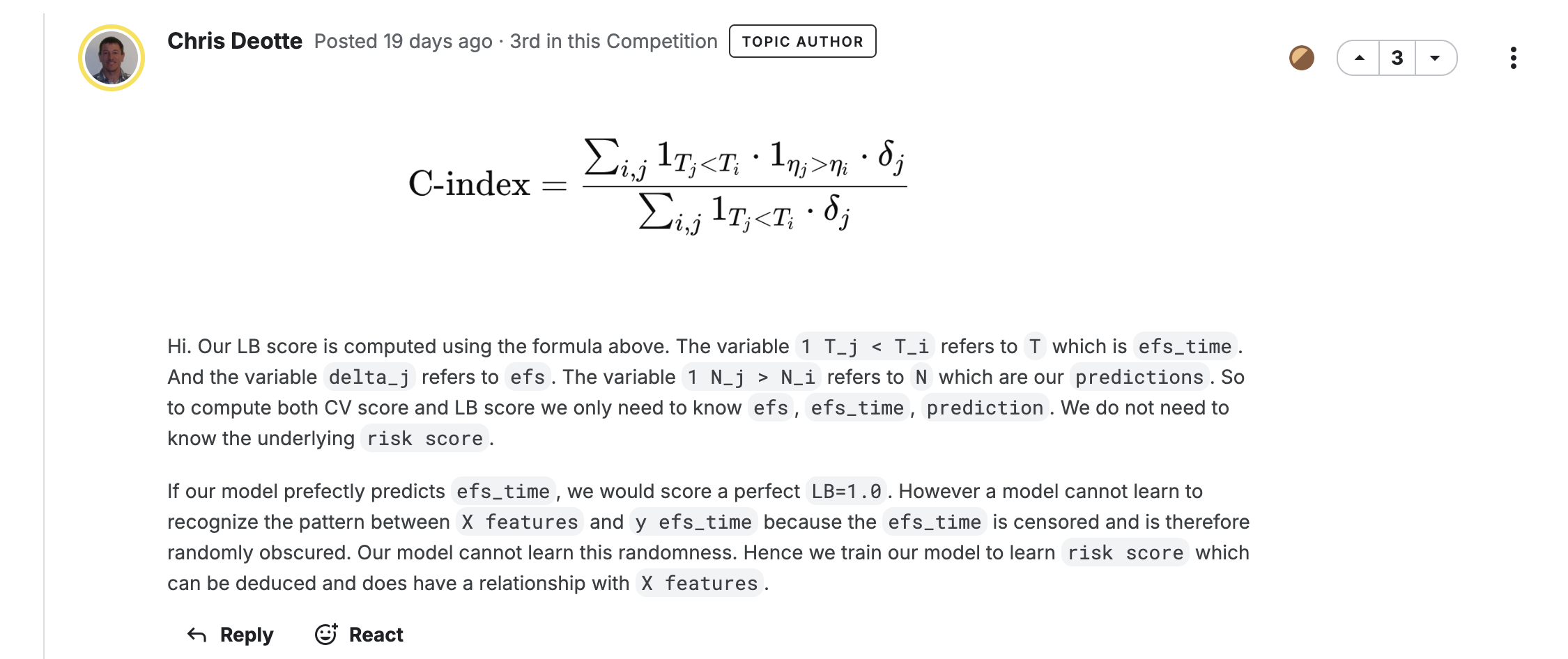

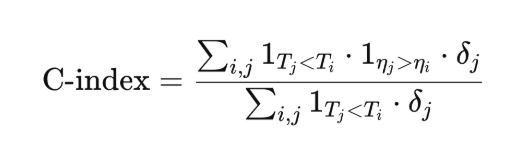

• Here is the formula:

Ground Truth and Predictions

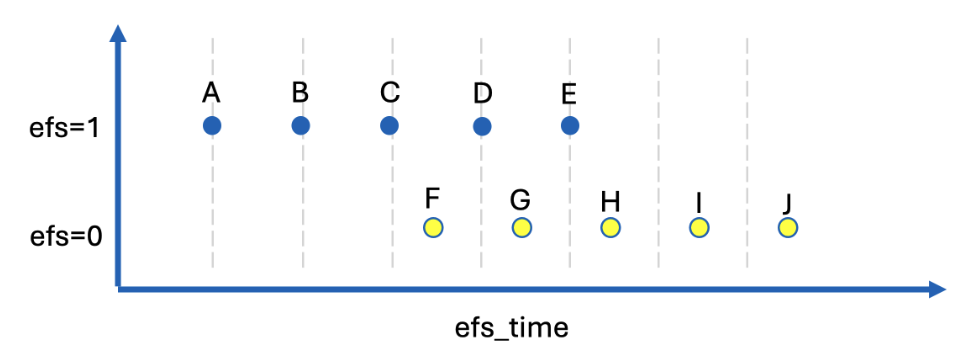

• Here is an image which will help us understand what this means:

• Imagine that there are only 10 rows in the train.csv file shown above as 10 dots.
• There are 5 efs=1 and 5 efs=0.
• The efs_time is displayed in the plot above.
• Points A, B, C, D, E have efs=1, and points F, G, H, I, J have efs=0.
• The point A has the least efs_time and the point J has the greatest efs_time.
• Each patient with efs=1 had an event, and the time before event was efs_time.
• Each patient with efs=0 we do not know if they had an event or did not have an event.
• All we know is that they were without event for at least efs_time long.
• To summarize, each efs=1 was without event for exactly efs_time.
• And each efs=0 was without event for at least efs_time.

How To Compute C-Index Denominator

• The C-Index metric is a ranking metric similar to AUC.
• The denominator counts all pairs of dots where we know ground truth T_j < T_i where T is the actual time without event (note when efs=0 then actual time without event > efs_time and when efs=1 then actual time without event = efs_time).
  • T represents the "actual time without event" of a patient
  • efs=1 indicates the occurrence of an event (e.g., death)
  • efs=0 indicates a censored case (end of follow-up)
  • Actual survival time (T) in two situations:
    • case 1) When efs=1:
      - T = efs_time
      - We can know the exact survival time
      case 2) When efs=0:
      - T > efs_time
      - We only know that they survived beyond the last observation point (efs_time)
  • Examples of when we can determine "T_j < T_i":
    • # Example:
      Patient1: efs=1, efs_time=10  → T1=10
      Patient2: efs=0, efs_time=15  → T2>15
      Patient3: efs=1, efs_time=20  → T3=20
      # Comparable pairs:
      - T1 < T3 (10 < 20)
      - T1 < T2 (10 < T2, where T2 is greater than 15)
  • Meaning of C-Index denominator:

    • Among all possible patient pairs (i,j)
    • Count the number of pairs where we can definitively determine "who lived longer"
    • The reason for calculating this way is that for censored cases (efs=0), we don't know the exact survival time, so we only include pairs that can be definitively compared in the evaluation.

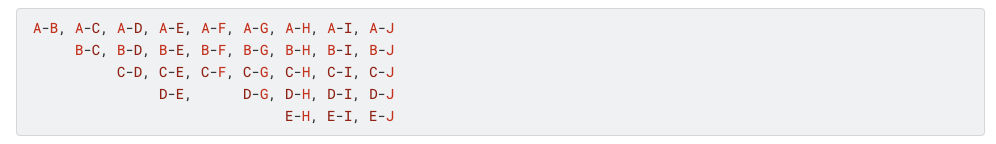

• The variables i and j are indices that range over every dot. In the example above, there are 32 possible pairs that we know T_j < T_i:

• Note we do not know if D is less than F because we do not know the actual time without event for F, we only know that F's time without event is at least what it appears in the plot above (because F is efs=0).
• Also we do not know if G is less than H because we do not know actual time without event for G nor H (both are efs=0).

How To Compute C-Index Numerator

• The C-Index numerator is about our predictions.
• For the 32 pairs above, we count how many of our predictions also follow these inequalities.
• For example, is our prediction A greater than B? Is our prediction A greater than C? etc etc.
• We ask 32 questions.
• The last is, is our prediction E greater than J.
• If all 32 questions answer yes, then our metric score = 1.
• If all questions answer no, then our metric score = 0.
• If 22 questions answer yes, then our metric score = 22/32 = 0.6875.
• (Note that inequalities in denominator are less than (and about time).
• And our predictions for the same pairs are greater than (and about risk).
• This is because the denominator represents times being less than.
• And our numerator represents risks being greater than.
• In other words a patient with a shorter time without event has a greater risk.
• And we are predicting risk factor.
• (If you get this backwards, just change your predictions with pred = -1 * pred).)

How To Build a Model

• If we only use efs as classification 0 or 1, to train our model (like current public notebooks), then our model will not be able to correctly compare A and C which both have efs=1.
• If we use efs_time as regression, then our model can be smarter.
• And if we use both efs and efs_time to train our model (classification/regression), our model will be smartest!

Starter Notebook

• There are two ways to approach this competition and utilize both efs and efs_time:
  1. Combine efs and efs_time ourselves into a new single target.
     • Then train a model using either classification or regression (on the new single target).
     • This is what i do in my XGB starter notebook here and NN starter notebook here.
       • My annotation on XGB starter notebook: https://dongsunseng.com/entry/CIBMTR-Equity-in-post-HCT-Survival-Predictions-4-GPU-LightGBM-Baseline-CV-681-LB-685
       • My annotation on NN starter notebook:
     • (Note each uses a different transformed target and we can experiment making more transformed targets to find the best!)
  2. Use a model that supports survival loss (i.e. Cox or AFT).
     • Then we leave efs and efs_time as is and input both into the model.
     • The model learns from both and predicts a single target for us.
     • More discussion about this here.
       • My annotation on the discussion: https://dongsunseng.com/entry/CIBMTR-Equity-in-post-HCT-Survival-Predictions-6-How-To-Train-XGBoost-with-Survival-Loss

How To Compute Metric in Notebook

• To compute the competition metric in your notebook, attached this notebook here which contains WHL files (because we need to pip install with internet off to be able to submit to comp).
• Also attach Kaggle's metic notebook here.
• Then add the following code in the first cell:

!pip install /kaggle/input/pip-install-lifelines/autograd-1.7.0-py3-none-any.whl
!pip install /kaggle/input/pip-install-lifelines/autograd-gamma-0.5.0.tar.gz
!pip install /kaggle/input/pip-install-lifelines/interface_meta-1.3.0-py3-none-any.whl
!pip install /kaggle/input/pip-install-lifelines/formulaic-1.0.2-py3-none-any.whl
!pip install /kaggle/input/pip-install-lifelines/lifelines-0.30.0-py3-none-any.whl

• Afterward to compute the competition metric, run this code where preds are your oof predictions:

from metric import score
y_true = train[["ID","efs","efs_time","race_group"]].copy()
y_pred = train[["ID"]].copy()
y_pred["prediction"] = preds
m = score(y_true.copy(), y_pred.copy(), "ID")
print(f"CV Score = {m}")

---
